DONGHAE manufactures oil skimmers that remove waste oil, grease, sludge and almost any hydrocarbon from the surface of industrial process liquids and waste waters. Our belt oil skimmer, Floating oil skimmer, Scraping oil skimmer and pipe oil skimmer are placed in a wide range of industries.

Floating Oil Skimmer
Floating Oil Skimmer

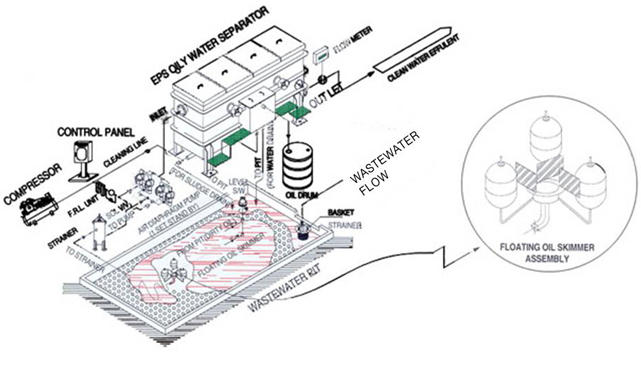

PRINCIPLE of Floating Oil Skimmer
This is the equipment that suck in the oil floating an the surface, floating around the water surface freely. The skimmer in the type of water surface flotation is sued with air diaphragm pump & oily water separator. (the oil, water & air is sucked in all together in sucking in)
CHARACTER of Floating Oil Skimmer
01 Floating oil skimmer is possible to remove a large quantity of oil by using the compulsory suction with pump.
02 Floating oil skimmer is possible to utilize the hour of stay in the stored tank & PIT since the suction hole is on the surface of water and to increase the efficiency of oily water separation.
03 Floating oil skimmer is suitable to remove oil floating the wide surface of water.
04 Floating oil skimmer is possible to remove minute oil layer perfectly floating around the surface of water since it floating around the water surface and suck in the oil compulsorily.
05 Floating oil skimmer is possible to suck in of intercept a large floating material thanks to the attachment of the Strainer.
06 There in no problem of sludge since it floats on the surface of water.
07 The water is sucked on with swirling since the suction promoting. Plate is installed in the suction hole. The oil is sucked in fran the upper part, and so it has nothing to worry about the small amount of suction water and control the level of water surface. (Maximum : 50m/m)


MODEL NO.
Capacity(/HR)
SIZE(mm) (*H)
OIL OUTLET
STRAINER (2#)
DHOS-WB0.5
3
300*250
25A
NONE
DHOS-WB01
8
600*400
32A
NONE
DHOS-WB02
25
720*600
50A
NONE
DHOS-WB03
40
870*650
80A
NONE
DHOS-WB04
60
1050*1000
100A
NONE
